CS061/4-20HEX

https://www.framingtech.com/web/image/product.template/427289/image_1920?unique=550200b

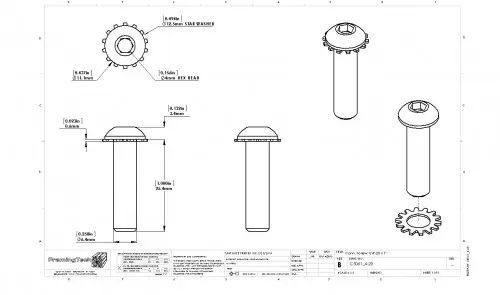

Connection Screw & Star Washer for 6slot, 1/4-20 x 1

$ 1.98 1.98 USD $ 1.98

*

Please enter valid length...

Cut Charge:

Not Available For Sale

This combination does not exist.

20 Series - 6mm T-slot
Contact Us

Share

ACCESSORY PRODUCTS
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provide both a filter and a template to use.

Features:

  • Inch profile connector.
  • Inexpensive connection method for T-slot profiles.
  • Star washer grips into profile for a strong connection.

Machining Requirements:

  • Mounting profile requires:
    • Center-bore of connecting profile needs to be tapped for a 1/4"-20
  • Mating profile requires:
    • Drill 3/16" access hole for hex wrench to tighten connection screw
