UF40-08

https://www.framingtech.com/web/image/product.template/487602/image_1920?unique=da16ce3

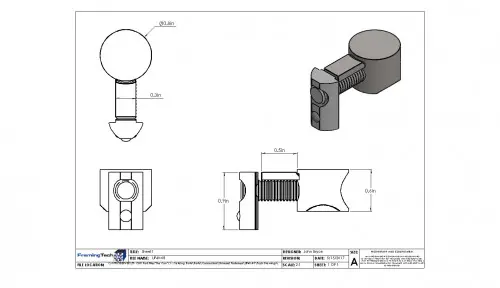

Universal Fastener(clear body) w/ DTNB32M8 & M8x30SHCS-ZC

$ 4.82 4.817925 USD $ 4.82

*

Please enter valid length...

Cut Charge:

Not Available For Sale

This combination does not exist.

Contact Us

Share

ACCESSORY PRODUCTS
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provide both a filter and a template to use.

Features:

  • Commonly referred to as a BANJO Fastener.
  • 40mm with an 8mm T-slot profile connector.
  • Connects a 40mm - 08 T-slot profile to a 40mm - 08 T-slot profile.
  • Referred to as a " Banjo" or an "Anchor" style connector.
  • Versatile connector allowing adjustability while providing a high-strength connection.

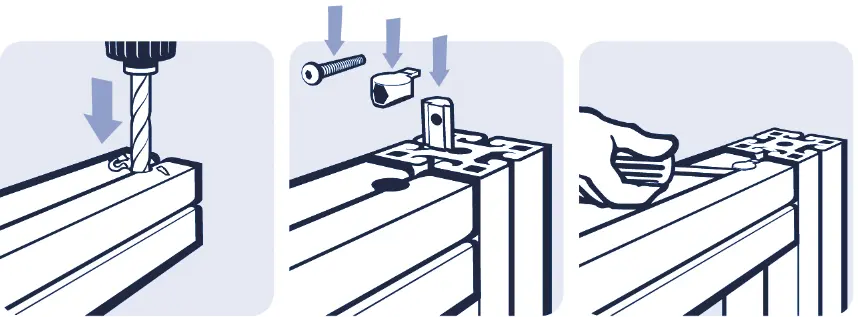

Machining Requirements:

  • Universal fastener placement:
    • Mill a 13/16" hole, 11/16" deep
    • 0.855" away from profile end

Hardware Includes:

  • 1x - Die cast Zinc body.
  • 1x - M8 x 30 socket head cap screw.
  • 1x - Ball spring drop-in T-nut with a M8 thread.

Tools Required:

  • M6 Hex wrench (Allen Key)
