45mm x 45mm Light T-Slot Profile - 2 (10mm) TSlots Opposite, 2 Smooth Sides

https://www.framingtech.com/web/image/product.template/404043/image_1920?unique=b8880ba
45x45 2 Slot Opp (10 Slot) Light Extrusion 6 meters Long

$ 176.40 176.4 USD $ 176.40

Length *

*

Please enter valid length...

Cut Charge:

Not Available For Sale

This combination does not exist.

Extrusion 45 Series
Contact Us

Share

ACCESSORY PRODUCTS
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provide both a filter and a template to use.

SKU: 45X45-2SL/6M

Features:

  • Light weight medium duty.
  • Profile with two opposite smooth surfaces.
  • Has two opposite 10mm T-slots.
  • Center-bore is for an M12 or 1/2-13 tap.

Technical Specifications:

Material6063-T6 Aluminum
FinishClear Anodized
Weight1.62 kg/m (1.148 lbs/ft)
Surface Area5.98 cm2
Length6 meters (236 in) (19.68 ft)
Moment of InertiaI(x)= 12.50 cm4
I(Y)= 10.83 cm4

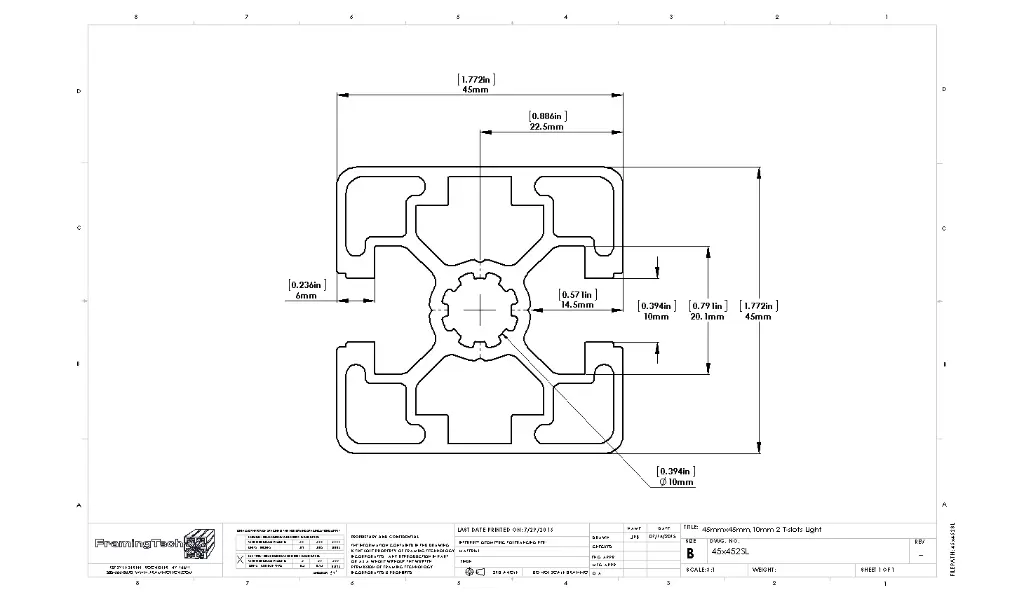

45x452SL.STEP
