TB0830

https://www.framingtech.com/web/image/product.template/487123/image_1920?unique=546baf1
T-Bolt, 8 Slot, M6 Thread 30mm Long

$ 2.18 2.18295 USD $ 2.18

*

Please enter valid length...

Cut Charge:

Not Available For Sale

This combination does not exist.

Contact Us

Share

ACCESSORY PRODUCTS
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provide both a filter and a template to use.

Features:

  • Metric profile fasteners
  • Ideal for heavy duty holding or mounting applications
  • Used to fasten panels or components to the T-slot
  • Serrations on the T-bolt provides a vibration proof and electrically conductive connection
  • For ESD applications, use as a grounding-lug

Technical Specifications:

MaterialSteel
FinishZinc Plated
ColorSilver
Shear Force112 lbs. (500 N)
Moment Force443 lbs-in (50 Nm)

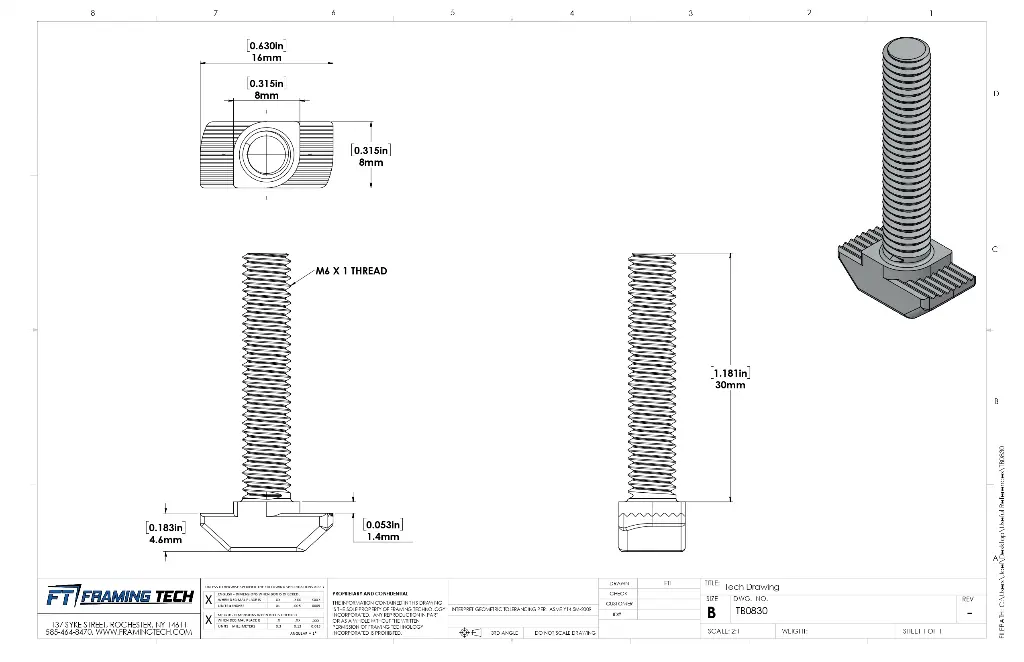

TB0830.STEP
